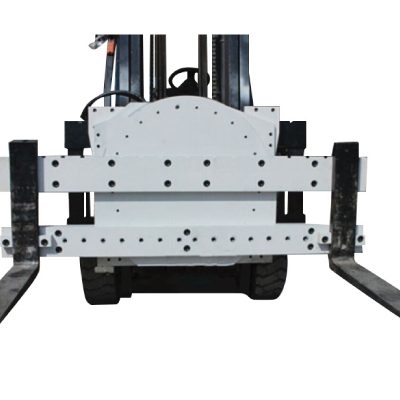

Heavy Duty Forklift Rotator Attachment For Sale - Fujian Huamai Machinery Co., Ltd.

Ezaugarriak

Hydraulic system: hydraulic motor and foreign companies jointly developed by a new generation of products; rotating hinge and seal oil are imported products. Rotating two-way hydraulic oil circuit, self-locking, ensuring safety at work.

Egiturazko piezak: modulazio handia duten karga errodamenduak, karga ahalmena; zizareak eta zizareak hortz profilaren ondorioz, eraginkortasuna hobetu dezakete, bero galera murrizten dute, baina baita auto-blokeo ezaugarria lortzeko.

Mechanical performance: the case can be achieved with a 360 ° two-way rotation, a group of asphalt can be added to meet the requirements; standard fork can be used directly without modification.

abantailak

1. Proven durable construction design, unique rotating driven system, meet the high strength continuous operation.

2.Strong rotating driving torque achieved the stable and reliable rotating function.

3.Hydraulic motor fixed with reversible hydraulic lock, any angle position of lock function.

Bideoak

zehaztapena

Catalogue Order No.	Edukiera @ Kargatzeko Zentroa	Kamioia / errotatorien muntaketa klasea	Rotator / Forks Muntatze-klasea	Gurdiaren zabalera (Mm)	Orkatz-tartea Max (Mm)	Sardexkako tartea min (Mm)	Zabalera orokorra (Mm)	pisu (kilogramo)
RRB20D-001a	1700@500	II	II	815	705	610	840	188
RRB20D-002a	1600@500	II	II	815	705	610	840	254
RRB20D-003A	1600@500	II	II	815	705	610	840	259
RRB20D-004A	1600@500	II	II	815	705	610	840	268
RRB20D-005A	1600@500	II	II	815	705	610	840	277
RRB20D-006A	2200@500	II	II	815	705	813	840	300
RRB20D-007A	2200@500	II	II	940	835	813	965	309
RRB30D-008A	3000@500	II	II	940	855	813	965	313
RRB30D-008b	3000@500	III	II	940	855	813	965	329
RRB30D-009a	3000@500	II	II	1145	1060	813	1170	327
RRB30D-009B	3000@500	III	II	1145	1060	813	1170	343
RRB35D-010B	3500@500	III	III	1065	990	813	1090	390
RRB35D-011B	3500@500	III	III	1220	1140	813	1245	406

Ohar

Eskuratu eskorgaren eta eranskinen benetako ahalmena eskorga fabrikatzailearen eskutik.

One sets additional oil circuit required on forklift

According to user needs to increase forks. Please note the fork's capacity.

The actual mount ,please according to the fork width adjustment positioning block, choose one mating surface, preventing load rotates, fork on the upper and lower cross beam under moving.

Mesedez, jarri harremanetan HUAMAI-ren salmentekin

Fluxu eta presio hidraulikoa

Model	Minutu Fluxu hidraulikoa (L / min)	Rec. Fluxu hidraulikoa (L / min)	Fluxu hidrauliko maximoa (L / min)	Rec. Presio hidraulikoa (barra)	Max. Presio hidraulikoa (barra)
RRB20D	20	40	60	35	160
RRB30D	20	40	60	35	160
RRB35D	20	40	60	35	160
RRB35D	20	40	60	35	160

Birakariaren zehaztapena

Model	Birakariaren abiadura	Birakariaren momentua
RRB20D	7.0r/min@57L/min	7200N.M@160Bar
RRB30D	5.2r/min@57L/min	9000N.M@160Bar
RRB35D	5.2r/min@57L/min	9000N.M@160Bar
RRB35D	5.2r/min@57L/min	9000N.M@160Bar

Aukerak

Forks
180 degrees rotator
Welding type of hook

Aplikazio

Rotator widely used in food, automation, chemical, materials recycling, smelting foundry industries, as well as any need to rotate the hopper or box tipping and mixing occasions, the goods can quickly flip or conversion, and then immediately coherent the fork back to its original location.

Xehetasunak

Jatorrizko lekua: Fujian, Txina (Mainland)
Markaren izena: HUAMAI
Model Number: RRB20D-001A
Product Name: Rotating forklift attachment
Type: RRB20D-001A
Truck/Rotator Mounting Class: II
Carriage Width (mm): 815mm
Fork Max Spacing (mm): 705mm
Fork Min Spacing (mm): 610mm
Overall Height (mm): 840mm
Weight (kg): 188mm
Usage: Food, automation, chemical, materials recycling
